Front-End Emergency
LED Drivers


Introducing ACE LEDS' new
Front-End Emergency LED Drivers
For Flat Panel Luminaires

Our Front-End Emergency LED Drivers are specially designed for use with Flat Panel Luminaires. They convert incoming AC power into a stable, LED-friendly DC output before it enters the light fixture, letting you power the luminaire without opening it.

Value Engineered with the following features:

  • Easy to Install. Connects directly to the AC driver with no need to open the luminaire to wire emergency power.

  • Available in Multiple Output Options 7, 10, and 14 Watts.

  • 12 Volt Tap Wire for Control Bypass  Automatically bypasses lighting controls during emergency mode for uninterrupted illumination.

  • Mounting Bracket Available Securely mounts to flat panel luminaires for a clean and reliable installation.

  • 5-Year USA Warranty

  • Stocked and Ready to Ship

  • No Minimum Order Required

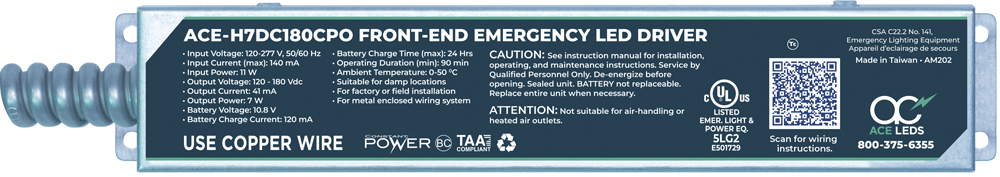

ACE-H7DC180CPO


ACE-H7DC180CPO

7 Watt Front-End
Emergency LED Driver
for Flat Panel Luminaires

Input Voltage:
120 - 277 Volts

Output Current:

41 mA

Output Voltage:

120 - 180 Volts

Dimensions:

9.5” L x 1.7” W x 1.24” H x 8.9” M

Spec Sheet
Instruction Sheet

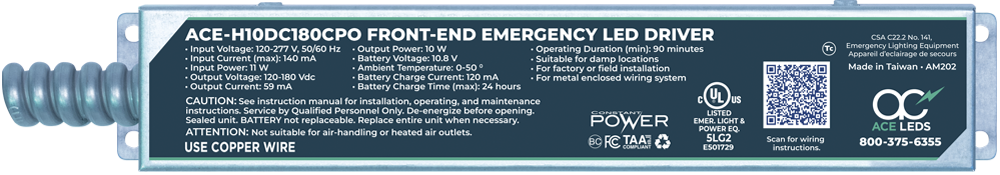

ACE-H10DC180CPO


ACE-H10DC180CPO


10 Watt Front-End
Emergency LED Driver
for Flat Panel Luminaires

Input Voltage:
120 - 277 Volts

Output Current:

59 mA

Output Voltage:

120 - 180 Volts

Dimensions:

9.5” L x 1.7” W x 1.24” H x 8.9” M

Spec Sheet
Instruction Sheet


ACE-H14DC180CPO


ACE-H14DC180CPO

14 Watt Front-End
Emergency LED Driver
for Flat Panel Luminaires

Input Voltage:
120 - 277 Volts

Output Current:

78 mA

Output Voltage:

120 - 180 Volts

Dimensions:

9.5” L x 1.7” W x 1.24” H x 8.9” M

Spec Sheet
Instruction Sheet
