Emergency
Lighting Controls
Automatic Load Control Relay

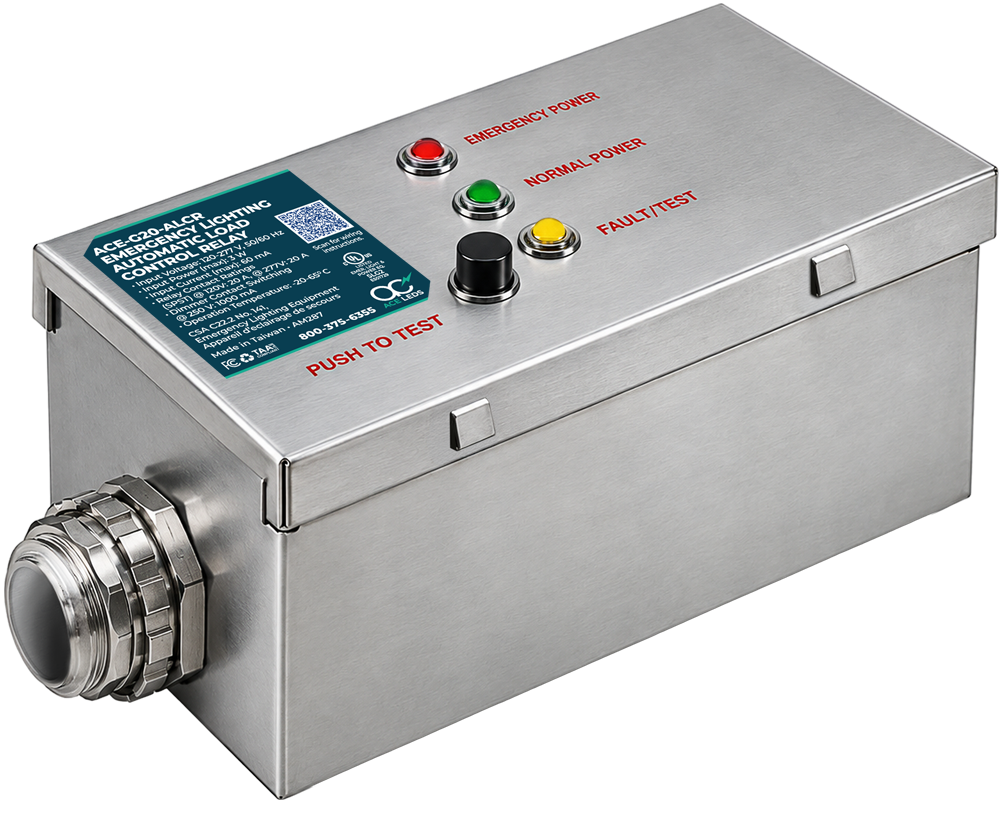

The ACE-G20-ALCR Emergency Lighting Automatic Load Control Relay is an emergency lighting control device that allows designated emergency luminaires to be utilized as normal lighting luminaires in normal-mode so that they can be switched on/off following the on/off state of the normal lighting on/off switch.
Additionally, the ACE-G20-ALCR allows these luminaires’ dimming functions to operate as normal. When normal power fails, the ACE-G20-ALCR overrides all on/off switches, control devices, and dimming controls, enabling the emergency luminaires to be powered in emergency-mode to full light output. The ACE-G20-ALCR also includes a dual zone dimming relay which can accommodate two separate 0-10 V dimming circuits.
The ACE-G20-ALCR includes a momentary push-to-test switch, and an optional connection for an optional remote switch, which can be used as a remote test switch or remote trigger.
Featuring:
- Extended Temperature Range
- Dual-Zone Dimming Relay
- Remote Test/Trigger Switch Option
- UL 2043 Plenum Rated
- Damp Location Rated
- UL 924 Listed for U.S. and Canada
EMERGENCY LIGHTING POWER OVER ETHERNET (POE) AUTOMATIC LOAD CONTROL RELAY
The ALCR-G5-POE-FTS PoE Automatic Load Control Relay is an emergency lighting control device that allows designated luminaires to be powered in emergency mode by an emergency source of power, such as a remote generator or inverter, upon the loss of normal power.
The ALCR-G5-POE-FTS includes two separate relays: an AC power ALCR, and a DPDT DC-rated relay. Under normal power conditions, the designated LED Array is powered by a PoE LED driver. When there is a loss of normal power, the ALCR-G5-POE-FTS senses the loss and performs two primary actions:
- The ALCR-G5-POE-FTS disconnects the LED array from the PoE LED driver and connects the LED array to the output of an AC LED driver.
- The ALCR-G5-POE-FTS serves as an ALCR, connecting the emergency AC source of power to the AC LED driver which then powers the designated LED array in emergency-mode.
Emergency Lighting
Dimming Control Relay
Our Emergency Lighting Dimming Control Relays control the dimming circuit of an LED driver in Emergency-mode. Under Emergency-mode conditions, when there is a failure of the Normal source of power, the ACE-G.5-ELDCR is de-energized which defeats the dimming circuit and forces the LED Driver into Full Light Output.
- Includes an isolated SPDT Relay: Can be used with 0-10 Vdc dimming or DALI dimming circuits.
- Suitable for indoor and damp locations
