Decade™ 10-Year, USA-Backed Warranty LED Drivers

Decade™ 10-Year Warranty LED Drivers

Make the Decade™ 10-Year, USA-Backed Warranty Your Competitive Advantage

Decade™ Led Drivers are built to perform in demanding, real-world conditions. Backed by a 10-year USA-backed warranty, each driver is engineered with ultra-premium 130°C-rated capacitors and application-matched components selected for durability and long-term reliability. The result is consistent performance you can trust year after year.

Key Advantages of the Decade™ LED Drivers

10-year warranty at a maximum case temperature of 75°C; 5 years at 90°C
No added cost for extended warranty coverage
Robust, application-matched components for demanding environments
Enhanced thermal performance and long-term stability
ISO 9001-certified

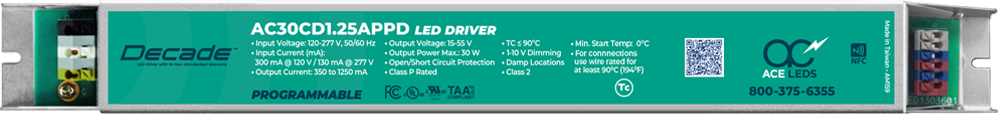

AC30CD1.25APPD

AC30CD1.25APPD

30 Watt Decade™ Constant Current
Programmable LED Driver
With 10-Year, USA-Backed Warranty

Input Voltage:

120 - 277 Volts

Output Current:

350 mA - 1250 mA

Output Voltage:

15 - 55 Volts

Dimensions:

12.3”L x 1.33”W x 1.08”H

10-year warranty at 75ºC Tc case temperature or
5-year warranty at 90ºC Tc case temperature

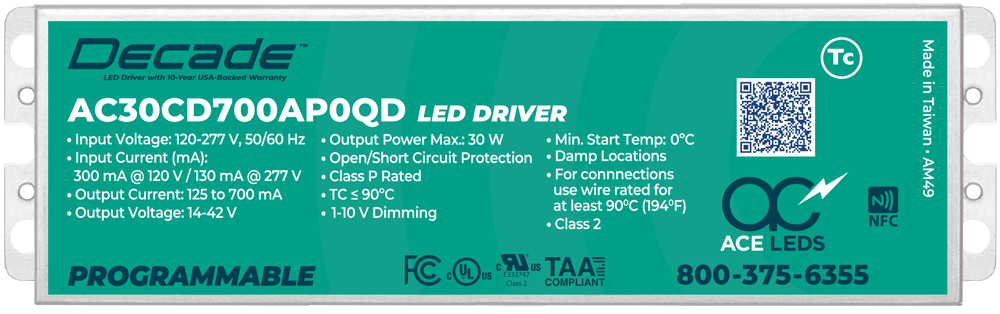

AC30CD700AP0QD

AC30CD700AP0QD

30 Watt Decade™ Constant Current
Programmable LED Driver
With 10-Year, USA-Backed Warranty

Input Voltage:

120 - 277 Volts

Output Current:

125 mA - 700 mA

Output Voltage:

14 - 42 Volts

Dimensions:

6.22”L x 1.73”W x 1.22”H

10-year warranty at 75ºC Tc case temperature or
5-year warranty at 90ºC Tc case temperature

AC-50CD1.4APPD

AC-50CD1.4APPD

50 Watt Decade™ Constant Current
Programmable LED Driver
With 10-Year, USA-Backed Warranty

Input Voltage:

120 - 277 Volts

Output Current:

400 - 1400 mA

Output Voltage:

15 - 55 Volts

Dimensions:

12.8”L x 1.34”W x 1.15”H

10-year warranty at 75ºC Tc case temperature or
5-year warranty at 90ºC Tc case temperature

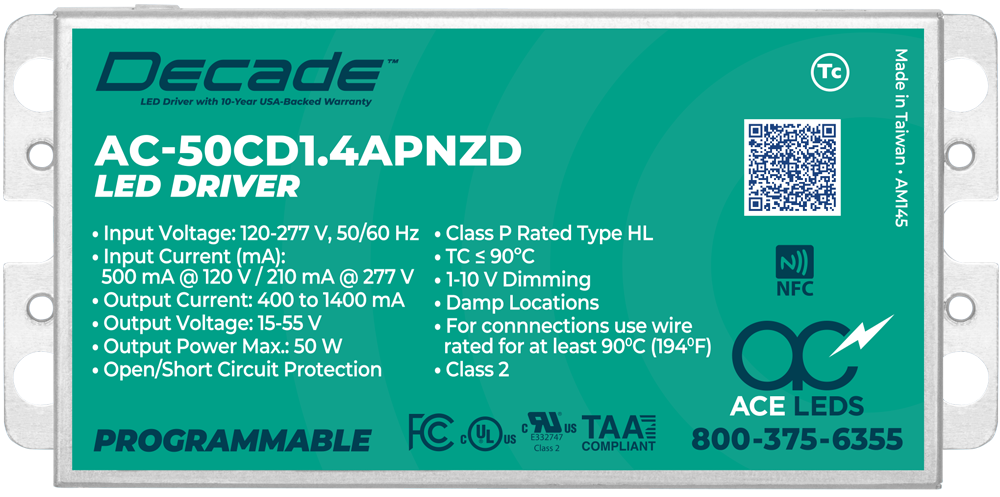

AC-50CD1.4APNZD

AC-50CD1.4APNZD

50 Watt Decade™ Constant Current
Programmable LED Driver
With 10-Year, USA-Backed Warranty

Input Voltage:

120 - 277 Volts

Output Current:

400 mA - 1400 mA

Output Voltage:

15 - 55 Volts

Dimensions:

5.23”L x 2.48”W x 1.18”H

10-year warranty at 75ºC Tc case temperature or
5-year warranty at 90ºC Tc case temperature

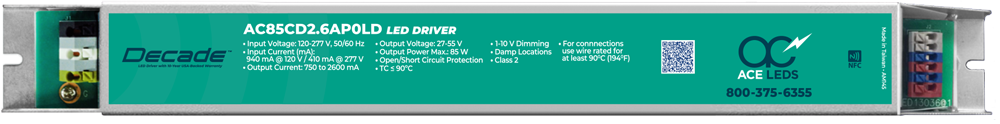

AC85CD2.6AP0LD

AC85CD2.6AP0LD

85 Watt Decade™ Constant Current
Programmable LED Driver
With 10-Year, USA-Backed Warranty

Input Voltage:

120 - 277 Volts

Output Current:

750 - 2600 mA

Output Voltage:

27 - 55 Volts

Dimensions:

15.55”L x 1.49”W x 1.08”H

10-year warranty at 75ºC Tc case temperature or
5-year warranty at 90ºC Tc case temperature

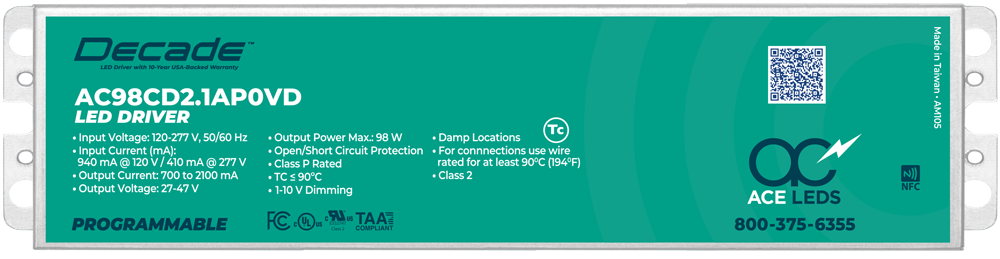

AC98CD2.1AP0VD

AC98CD2.1AP0VD

98 Watt Decade™ Constant Current
Programmable LED Driver
With 10-Year, USA-Backed Warranty

Input Voltage:

120 - 277 Volts

Output Current:

700 mA - 2100 mA

Output Voltage:

27 - 47 Volts

Dimensions:

9.5”L x 2.4”W x 1.46”H

10-year warranty at 75ºC Tc case temperature or
5-year warranty at 90ºC Tc case temperature
