LE56/XXYYS/23.7

LE56/XXYYS/23.7

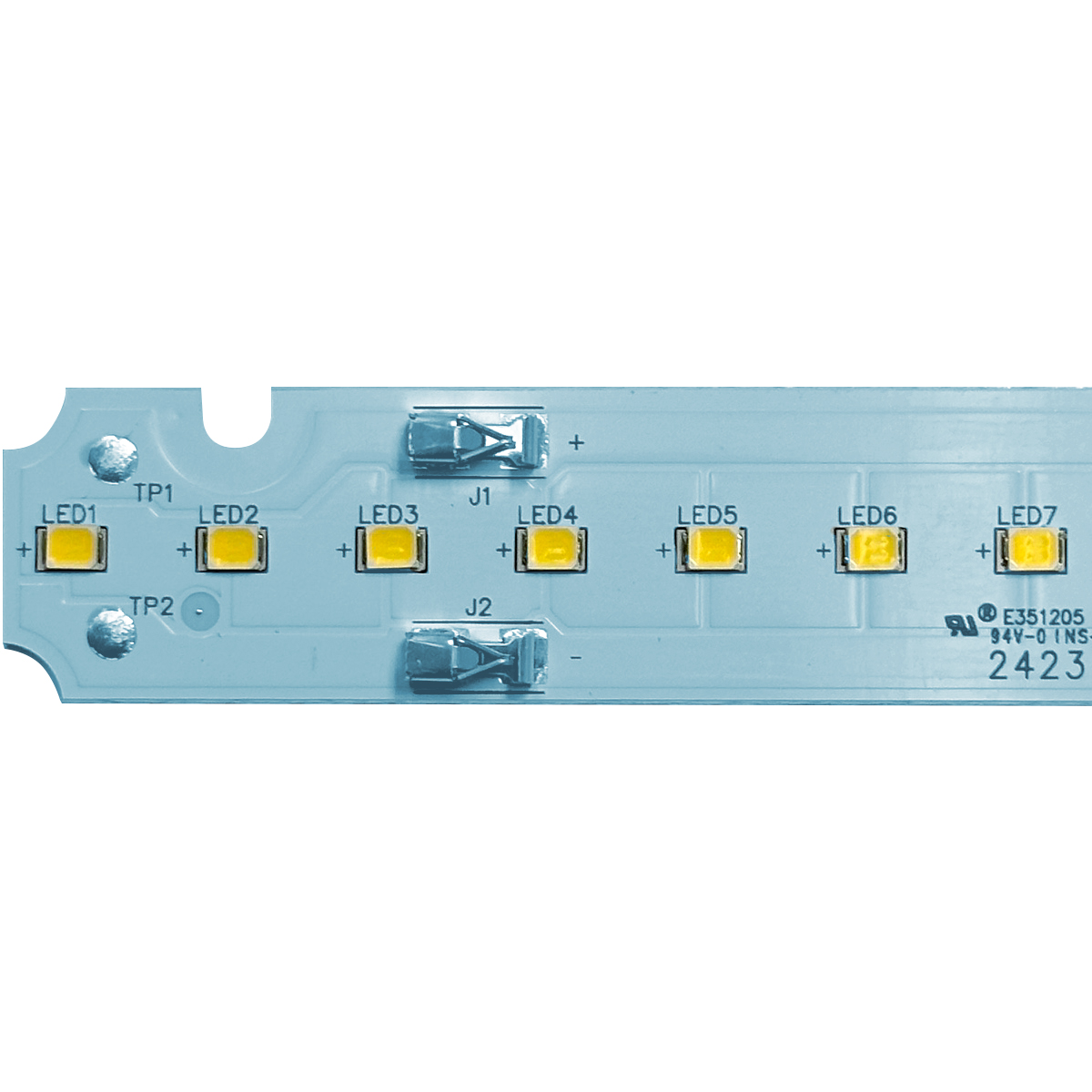

LED Module for Linear Fixtures

Out of stock

Category: Tag:

Description

Overview (LED configuration will be different for each PCB):

  • Constant Current DC Array
  • LE14/XXYYS/5.5 – 14 LEDs in series
  • LE28/XXYYS/11 – 14 LEDs in series x 2 parallel strings
  • LE56/XXYYS/23.7 – 14 LEDs in series x 4 parallel strings
  • Designed for easy use in standard luminaires
  • 3-step MacAdam Ellipse
  • UL Recognized Component

Connectivity:

  • Four Poke-In Connectors use #24-18 AWG stranded

Engineered by: ACE LEDS

Spec Sheet

Disclaimer: The modules above are designed for use with Samsung LEDs.
