← Scroll right to see more product information. →
| Product | Model Number | Product Type | Module Output | Model Efficacy | Forward Voltage | Dimensions | Driver Type | Drive Current | Life | Max Junction Temp | Max Test Point Temp | Operating Temp | Storage Temp | Total Module Power | Viewing Angle (FWHM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

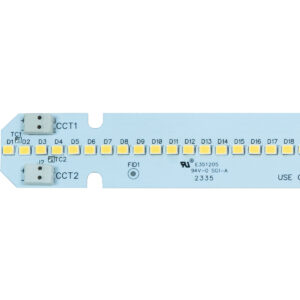

LE11230508CRN22
Learn More |
Linear 2-Channel/Tunable LED Modules | See Spec Sheet | See Spec Sheet | 19.0 V Typ. / 20.2 V Max. | 22"L x 0.94"W | Constant Current | 400 mA Typ. / 1920 mA Max. | 50,000 Hrs. @ 85º C | 125º C | 120º C | -40º C to +105º C | -40º C to +100º C | 9.1 W Typ. / 38.8 W Max. | 120º Lambertian distribution |
 |

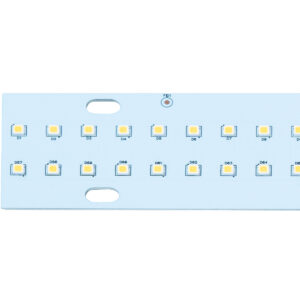

LE112CXXYYCRN22
Learn More |
Highbay LED Modules | 8564 Typ. / 12099 Max. @4000K/80CRI | 179.5 lm/W Typ. / lm/W 155.7 Max. @4000k/80CRI | 45.4 V Typ. / 46.2 V Max. | 22"L x 1.6"W | Constant Current | 1050 mA Typ. / 1680 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 47.7 W Typ. / 77.7 W Max. | 120º Lambertian distribution |
 |

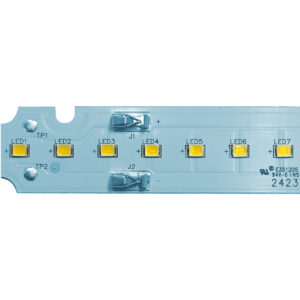

LE14/LE28/LE56 Linear Family
Learn More |
LED Modules for Linear Fixtures | 1070 Typ. / 1512 Max. @4000K/80CRI, 2141 Typ. / 3025 Max. @4000K/80CRI, 4282 Typ. / 6050 Max. @4000K/80CRI | 178.3 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI, 179.2 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI, 179.9 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI | 39.8 V Typ. / 40.5 V Max | 140 mm L x 20 mm W, 279 mm L x 20 mm W, 602.9 mm L x 20 mm W | Constant Current | 50,000 Hrs. @ 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 120º Lambertian distribution | |||
 |
LE14XXYYCRN5.5
Learn More |
LED Modules for Linear Fixtures | 1070 Typ. / 1512 Max. @4000K/80CRI | 178.3 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI | 39.8 V Typ. / 40.5 V Max | 140 mm L x 20 mm W | Constant Current | 150 mA Typ. / 240 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 6.0 W Typ. / 9.7 W Max. | 120º Lambertian distribution |
 |

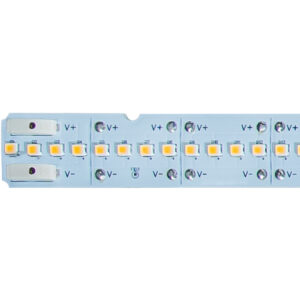

LE192CXXYYCRW48
Learn More |
Cuttable Linear LED Modules | 8515 Typ. / 25636 Max. @4000K/80CRI | 175.9 lm/W Typ. / lm/W 123.5 Max. @4000k/80CRI | 33.6 V Typ. / 36.0 V Max. | 47.471"L x 0.787"W | Constant Current | 1400 mA Typ. / 5760 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 48.2 W Typ. / 91.5 W Max. | 120º Lambertian distribution |
|
|
LE28XXYYCRN11
Learn More |
LED Modules for Linear Fixtures | 2141 Typ. / 3025 Max. @4000K/80CRI | 179.9 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI | 39.8 V Typ. / 40.5 V Max | 279 mm L x 20 mm W | Constant Current | 300 mA Typ. / 480 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 11.9 W Typ. / 19.4 W Max. | 120º Lambertian distribution |
 |

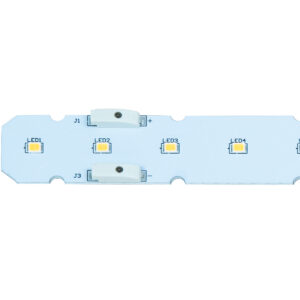

LE32CXXYYCRN22
Learn More |
Linear LED Modules | 2447 Typ. / 3457 Max. @4000K/80CRI | 179.9 lm/W Typ. / lm/W 155.7 Max. @4000k/80CRI | 45.4 V Typ. / 46.2 V Max. | 22"L x 0.79"W | Constant Current | 308 mA Typ. / 800 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 13.92 W Typ. / 19.52 W Max. | 120º Lambertian distribution |
 |

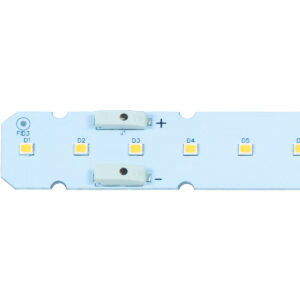

LE42CXXYYCRN22
Learn More |
Linear LED Modules | 3211 Typ. / 4537 Max. @4000K/80CRI | 179.4 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI | 39.8 V Typ. / 40.5 V Max. | 22.020"L x 0.79"W | Constant Current | 450 mA Typ. / 720 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 17.9 W Typ. / 29.1 W Max. | 120º Lambertian distribution |
 |

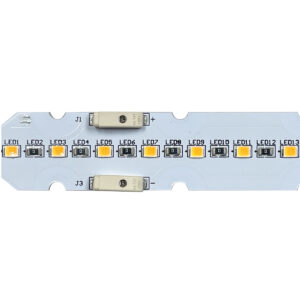

LE48CXXYYCRN22
Learn More |
Linear LED Modules | 3670 Typ. / 5185 Max. @4000K/80CRI | 179.9 lm/W Typ. / lm/W 155.7 Max. @4000k/80CRI | 22.7 V Typ. / 23.1 V Max. | 22"L x 0.74"W | Constant Current | 900 mA Typ. / 1440 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 20.4 W Typ. / 33.3 W Max. | 120º Lambertian distribution |
 |

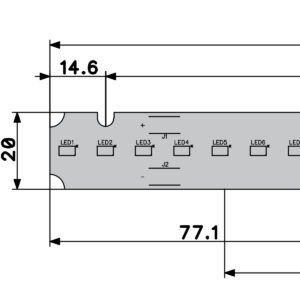

LE56CXXYYCRN22
Learn More |
Linear LED Modules | 4282 Typ. / 6050 Max. @4000K/80CRI | 179.2 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI | 39.8 V Typ. / 40.5 V Max | 559.2 mm L x 20 mm W | Constant Current | 600 mA Typ. / 960 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 23.9 W Typ. / 38.8 W Max. | 120º Lambertian distribution |
|
|
LE56XXYYCRN23.7
Learn More |
LED Modules for Linear Fixtures | 4282 Typ. / 6050 Max. @4000K/80CRI | 179.2 lm/W Typ. / lm/W 155.9 Max. @4000k/80CRI | 39.8 V Typ. / 40.5 V Max | 602.9 mm L x 20 mm W | Constant Current | 600 mA Typ. / 960 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 23.9 W Typ. / 38.8 W Max. | 120º Lambertian distribution |
 |

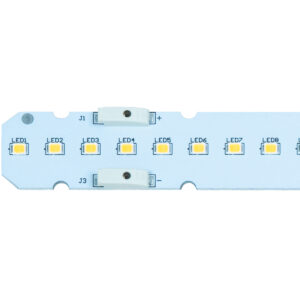

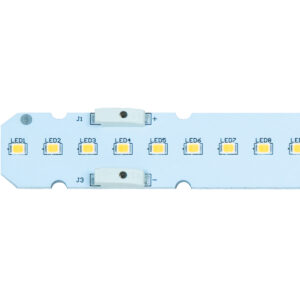

LE64CXXYYCRN22
Learn More |
Linear LED Modules | 4893 Typ. / 6914 Max. @4000K/80CRI | 179.2 lm/W Typ. / lm/W 155.7 Max. @4000k/80CRI | 45.4 V Typ. / 46.2 V Max. | 22"L x 0.79"W | Constant Current | 600 mA Typ. / 960 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 27.3 W Typ. / 44.4 W Max. | 120º Lambertian distribution |
 |

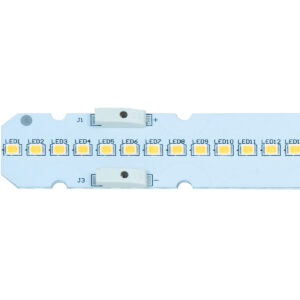

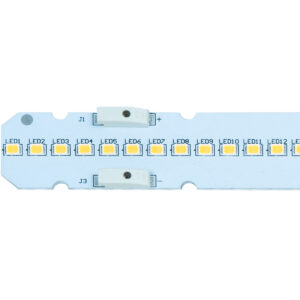

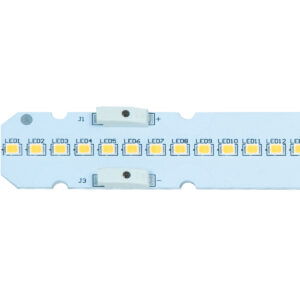

LE96CXXYYCRN22
Learn More |
Linear LED Modules | 7340 Typ. / 10371 Max. @4000K/80CRI | 179.5 lm/W Typ. / lm/W 155.7 Max. @4000k/80CRI | 45.4 V Typ. / 46.2 V Max. | 22"L x 0.79"W | Constant Current | 900 mA Typ. / 1440 mA Max. | 50,000 Hrs. @ 85º C | 85º C | 120º C | -40º C to +105º C | -40º C to +100º C | 40.9 W Typ. / 66.6 W Max. | 120º Lambertian distribution |
